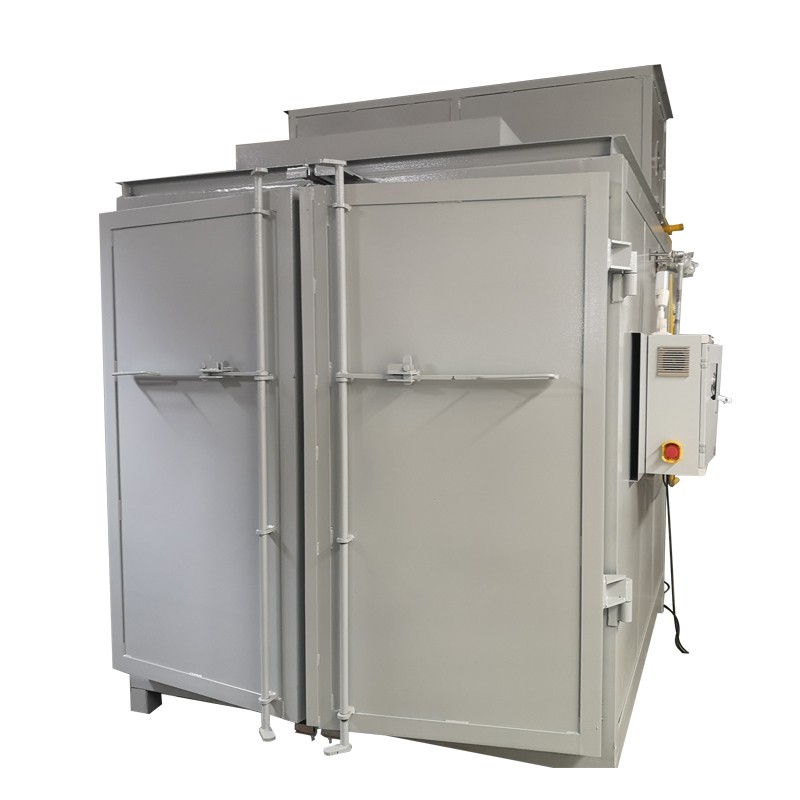

controlled pyrolysis burn off oven

Product Description

burn off ovens, also called heat cleaning ovens are widely used in the coatings, fibers, electric motors and plastics industry. Burn off ovens heat cleaning ovens are designed for removing paint, powder coating, epoxies, lacquers, urethanes and other organic or inorganic compounds from various metal parts, such as hangers, racks, hooks, jigs, fixture. And also for cleaning polymers from a variety of metal parts, such as: moulds, extrusion dies, screws, nozzles, extruders, hot runners, breaker plates.

Working Principle

The Burn Off Oven has two relatively independent heating systems as well as temperature and smog control system. In the first heating system, the furnace chamber is heated to a certain temperature range, and the control system automatically controls the atmosphere in the furnace to gradually decompose the coating (organic matter) on the workpiece into gas. The control system always guarantees the decomposition speed, the decomposition product (gas) concentration and is strictly controlled within a certain range. When the organic waste gas generated by the decomposition product is converted into CO2 and water vapor discharging from the chimney through the full combustion of second combustion chamber at 700-900 degree, the remaining part of the furnace is workpiece and a small amount of inorganic substances which have become powdery. Most of them have fallen into the bottom of the furnace from the workpiece during the process, and only a small amount of the remaining can be shaken off or scrubbed with water. The burn off oven is mainly used for the decomposition and peeling of the cured organic coating and peeling of most steel (or iron casting) reprocessing workpiece surface coatings.

Applications

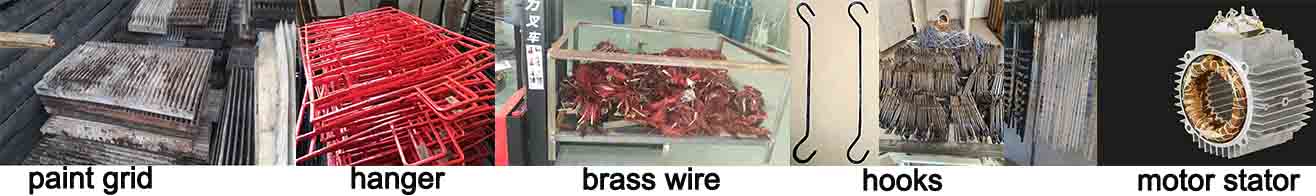

1) Paint & Powder Coating stripping (Racks, Jigs, Fixtures, Paint hooks and hangers)

2) Plastics stripping (Moulds, extrusion dies, screws, nozzles, extruders, hot runners, breaker plates)

3) Auto-Parts and Engine Rebuilding

4) Fiber & Chemicals

Advantages

1) Low labor cost and simple operation

2) Siemens Touch-Screen PLC control system

3) Cleaning is fully automatic

4) Short cycle time (about 2 to 4 hours)

5) Optional fuel (Natural gas/Propane gas (LPG)/Diesel) for burners

6) Multiple security protection and negative pressure in the chamber

7) Fully combustion of exhaust gas at 700-900 degree, without harmful toxins into environment

Specifications

Thermal cleaning effect
