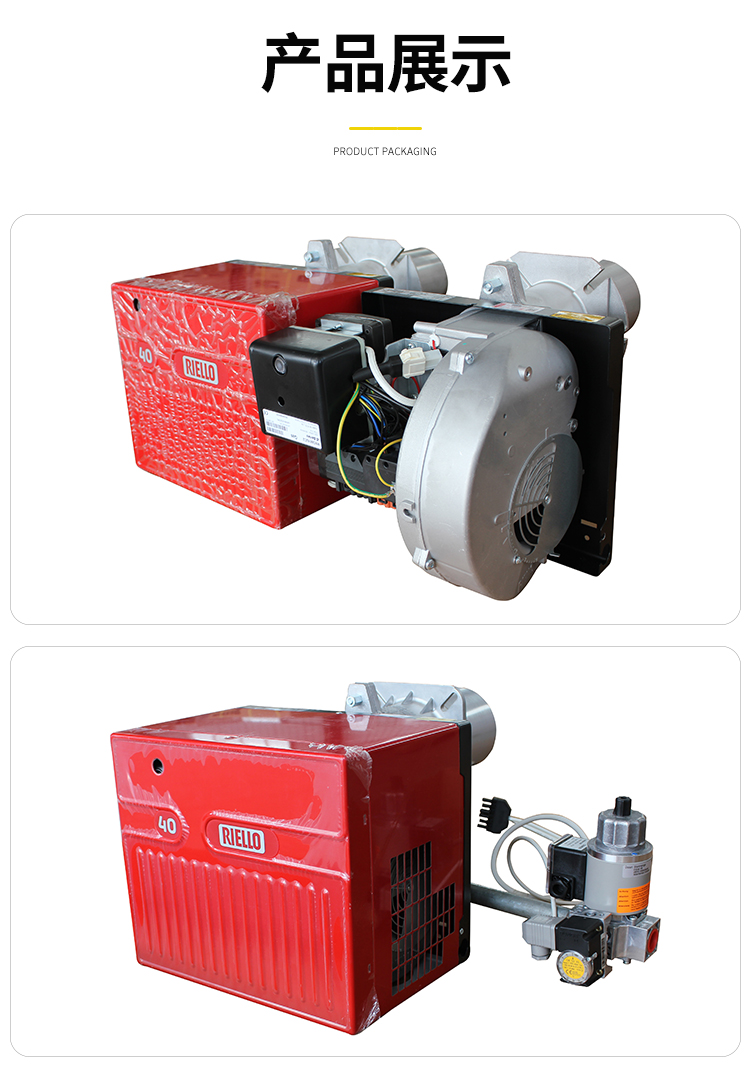

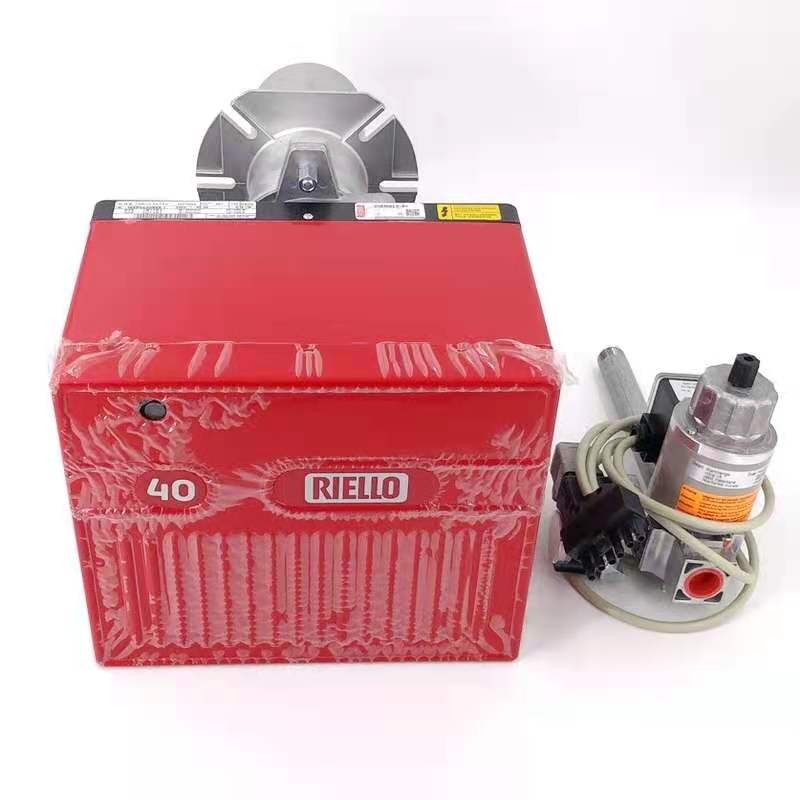

Riello 40 FS 10 Gas Burner

DESCRIPTION

The Riello 40 FS series of single stage gas burners is a complete range developed to meet any requirement of light industrial applications. The Riello 40 FS range is available in five different models, with outputs ranging from 11 to 220 kW, in four different constructions. All models use the same components Riello designed for the Riello 40 FS range. High quality level guarantees safe work. The Riello 40 FS burner is equipped with a microprocessor based control box with diagnostic functions. When developing these burners, particular attention has been paid to noise reduction, ease of installation and adjustment and obtaining the smallest possible dimensions to fit any type of boiler on the market. All models are approved to EN 676 European standard and comply with European directives on EMC, low voltage, machinery and boiler efficiency. All Riello 40 FS burners are tested before leaving the factory.

TECHNICAL DATA

Thermal power: 42 – 116 kW - 36,000 – 100,000 kcal/h

Energy source: natural gas

Net heat value: 8 – 12 kWh/Nm3 - 7,000 – 10,340 kcal/Nm3

Gas pressure: min. 16 mbar - max. 100 mbar

Motor: 230V / 0.7A

Electrical supply: Single phase, 230V ± 10% ~ 50Hz
